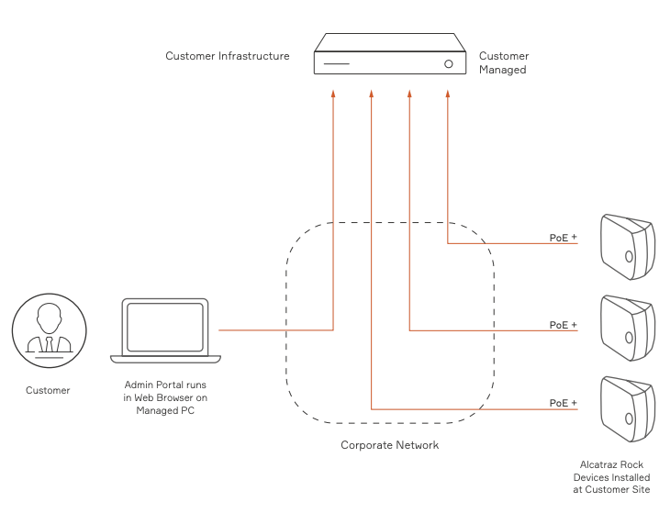

The on-prem system can include a customer-provided server installed with the Alcatraz AI software package, one or more Rocks, and a customer-provided computer for accessing the Alcatraz AI Admin Portal.
| Server OS: Windows Server 2019/2022 |
|
Database: PostgreSQL (included) MSSQL (optional*) - 2019/2022 Standard/Enterprise |
| Platform Architecture: Natively pre-built Services |
| Device OS: Custom Linux Derivative |
| Encryption: AES-256 |
| Security Protocol: TLS 1.2/1.3 |
| Rock Power: PoE+ (802.3at Type 2) 30W |
* Licensed MSSQL instance to be provided by the end-user.
System Requirements
| Max Rock Quantity | Processor | Memory | Storage | Network |
|
50 |
Intel® Core i3 10105 3.7GHz, 6M cache, 4C/8T or better | 8GB or better | 512 GB Hard Drive | 100 Mbps or better |
| 200 | Intel® Core i3 10305 3.8GHz, 8M cache, 4C/8T or better | 8GB or better | 1 TB Hard Drive | 1000 Mbps or better |
| 500 | Intel® Core i5 10505 3.2GHz, 12M cache, 6C/12T or better | 16GB or better | 2 TB Hard Drive | 1000 Mbps or better |
| >500 | Contact Alcatraz AI for details | |||
